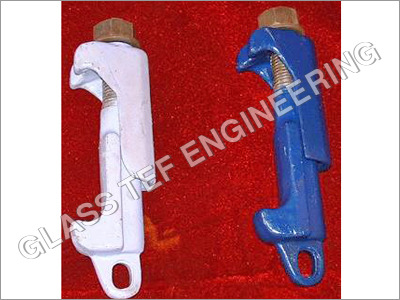

C Clamp

Get a Price/Quote

C Clamp Specification

Thread Type
Coarse Thread

Yield Strength
130 MPa

Connection Type
Screw Mechanism

Diameter
Threaded spindle: 10 mm

Tensile Strength
Up to 200 MPa

Flexibility
Rigid

Temperature Range
-10C to 80C

Tolerance
0.1 mm

Coating Type
Powder Coated

Product Type
C Clamp

Material
Cast Iron

Connection
Manual Screw

Shape
Round

Standard
IS 9182

Surface Treatment
Galvanized

Outer Diameter
60 mm (common size)

Section Shape
Round

Length
150 mm (6 inch)

Thickness
Standard, varies per size

Color
White & Blue

Usage
Holding workpieces during drilling, welding, or carpentry

Application
Woodworking, Metalworking, Construction

Material Grade
FG 200

C Clamp Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About C Clamp

Our organization has marked a distinct position in manufacturing and exporting robustly-built C Clamp. This clamp is precisely-engineered in our infrastructure facility, for which we are able to deliver the finest quality output to clients. High grade steel and cast iron is procured from authentic vendors to manufacture this clamp. This clamp is reckoned for high tensile strength, superior finish and longer functional life. C Clamp is extensively used for various industrial and engineering applications.

Other information:

FORGED C- CLAMPS FOR GLASSLINED REACTOR J- BOLTS FOR MANHOLE RING C-CLAMP SIZES AVAILABLE : 1) M16 X 80 CLAMPING LENGTH 2) M16 X 100 CLAMPING LENGTH 3) M 20X 100 CLAMPING LENGTH 4) M 20X 125 CLAMPING LENGTH 5) M 20 X135 CLAMPING LENGTH 6) M 24 X110 CLAMPING LENGTH 7) M 24 X125 CLAMPING LENGTH 8) M 24 X135 CLAMPING LENGTH

Designed for Versatility and Strength

Built to handle demanding applications, this C Clamp offers a maximum jaw opening of 6 inches and a powerful clamping force up to 1500 kg. Its robust chrome-plated spindle and tough cast iron frame deliver impressive holding capacity, making it suitable for tasks ranging from intricate carpentry to heavy metalworking and construction assembly.

Built to Last in Challenging Environments

The clamps galvanized finish and powder coating provide superior resistance to rust and corrosion. With its high tolerance (0.1 mm) and adherence to the IS 9182 standard, the clamp ensures consistent performance, even in environments ranging from -10C to 80C. Enjoy longevity with low maintenancejust keep the screw periodically lubricated.

Precision Clamping Made Easy

The coarse thread and manual screw mechanism ensure quick and secure clamping. The sliding tommy bar handle provides leverage for fine-tuned pressure, accommodating a variety of workpiece thicknesses. This user-friendly design helps achieve reliable results in every project, whether for professional workshops or on-site construction jobs.

FAQs of C Clamp:

Q: How do I properly use the C Clamp for woodworking or metalworking applications?

A: To use the C Clamp, position your workpiece between the clamps jaws and turn the screw handle to apply pressure. The sliding tommy bar offers additional leverage, allowing you to secure and stabilize the material for tasks such as drilling, welding, or assembly.

Q: What are the benefits of the clamps corrosion-resistant, powder-coated finish?

A: The corrosion-resistant, powder-coated finish protects the clamp from rust and environmental damage, ensuring long-lasting performance even in humid or demanding jobsite conditions.

Q: When should I lubricate the C Clamp for optimal performance?

A: Periodic lubrication of the screw is recommendedespecially with regular or heavy useto maintain smooth operation and prevent wear. A light machine oil applied as needed will suffice.

Q: Where can this C Clamp be used effectively?

A: This C Clamp excels in environments like woodworking shops, metal fabrication workshops, construction sites, and DIY settings. Its temperature range of -10C to 80C makes it suitable for both indoor and outdoor applications.

Q: What makes this clamp suitable for heavy-duty clamping tasks?

A: Featuring a clamping force up to 1500 kg and a rigid, FG 200 cast iron frame, the clamp can securely hold large or dense materials without bending or deformation. Its coarse-thread spindle and tommy bar handle provide the necessary strength for demanding projects.

Q: How does the manual screw and coarse thread mechanism benefit the user?

A: The screws coarse thread ensures quicker clamping action and reduced effort, while the manual tommy bar handle allows precise pressure control for different materials and thicknesses, improving safety and efficiency.

Q: What should I know about the clamps dimensions and compatibility?

A: With a 6-inch (150 mm) maximum opening and a standard 60 mm outer diameter, this C Clamp is suited for holding materials of various sizes. The round-section shape, 0.1 mm tolerance, and sturdy build ensure compatibility with most common workpieces handled in professional settings.
