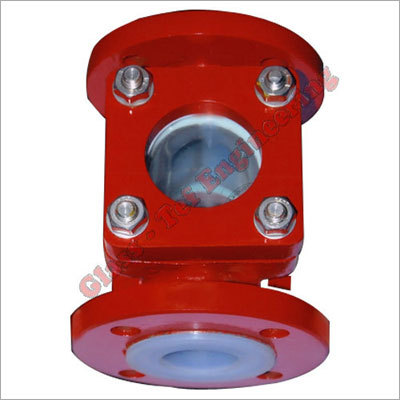

Window Type Sight Glass

Get a Price/Quote

Window Type Sight Glass Specification

Flexibility
Rigid

Yield Strength
205 MPa (Stainless Steel)

Diameter
100 mm

Sealing Type
Gasket Seal

Coating Type
No Coating

Tensile Strength
515 MPa (Stainless Steel)

Tolerance
0.1 mm

Connection Type
Flange

Product Type
Window Type Sight Glass

Material
Borosilicate Glass / Stainless Steel (Body)

Connection
Flanged

Shape
Round

Standard
ISO 9001:2015

Surface Treatment
Polished / Clear Glass

Outer Diameter
100 mm

Section Shape
Cylindrical

Length
50 mm (Body Length)

Thickness
5 mm (Glass Thickness)

Color
Transparent

Usage
Inspection and observation in pipeline and process systems

Rated Pressure
Up to 10 Bar

Material Grade
SS304 / SS316

Application
Chemical, Pharmaceutical, Food & Beverage, Water Treatment

About Window Type Sight Glass

Window Type Sight Glass

With the firm commitment to quality, we are involved in manufacturing and exporting excellent quality Window Type Sight Glass. This glass is made available in various grades, thicknesses and diameters as per the needs of clients. Our offered glass is installed in non-transparent pipeline applications. Known for tough-built, fine finish and high strength, this glass is hugely demanded in the market. To win the trust of clients, Window Type Sight Glass is designed incorporating advanced technology so that we deliver best quality output to clients.

Other information:

Specifications:

Strong
Durable
Sturdy construction
High quality material
Tested with fluid pressure

Product details

Material	glass
Size	all
Brand	glass tef
Temperature	high
Pressure	high
I deal in	New Only
Automation Grade	Automatic

Robust Construction with Superior Materials

Manufactured using high-quality borosilicate glass and stainless steel (SS304/SS316), this sight glass delivers excellent chemical resistance, durability, and stability. Its polished surface and transparent glass give users clear visibility for effective inspection, while the rigid structure ensures consistent performance under demanding conditions.

Ideal for Stringent Industrial Applications

Designed to meet the highest industrial standards, this sight glass adheres to ISO 9001:2015 and excels in chemical, pharmaceutical, food & beverage, and water treatment processes. Its precision engineering ensures leak-proof observation under rated pressures up to 10 Bar, making it a reliable option for critical process monitoring.

Easy Installation and Maintenance

The cylindrical design with a flanged connection and gasket seal allows for straightforward integration into pipelines. Its no-coating, polished finish reduces cleaning and maintenance efforts, supporting operational efficiency in high-demand environments.

FAQs of Window Type Sight Glass:

Q: How is the Window Type Sight Glass installed in pipeline systems?

A: The sight glass is integrated into pipeline and process systems using a flanged connection and secured with a gasket seal, which ensures a leak-proof installation. The flanged design makes it easy to align and fasten, facilitating quick installation and removal during maintenance.

Q: What materials are used for the sight glass and its body?

A: This product features a viewing window of borosilicate glass, renowned for its chemical resistance, and a stainless steel body (available in SS304 or SS316 grades), both selected for their durability and corrosion-resistance, suitable for harsh industrial environments.

Q: Where can this sight glass be applied?

A: The sight glass is ideal for use in chemical, pharmaceutical, food & beverage, and water treatment applications. Its robust design allows for safe and effective visual inspection and observation within both low and high-pressure process pipelines.

Q: What are the main benefits of using a Window Type Sight Glass?

A: Key benefits include real-time visual monitoring of flow or process media, chemical and thermal resistance, and enhanced operational safety. The clear, polished glass provides unobstructed observation, aiding in early detection of process issues and facilitating quality control.

Q: When is it necessary to use a sight glass with this specification?

A: Sight glasses with a 100 mm diameter, 5 mm glass thickness, and up to 10 Bar pressure rating are essential in processes where visual inspection of fluid flow, clarity, or phase is critical, especially where chemicals or hygienic conditions demand tough, inert viewing windows.

Q: How does the sight glass handle pressure and temperature variations?

A: With a stainless steel body (tensile strength 515 MPa, yield strength 205 MPa) and robust borosilicate glass, the sight glass withstands pressure up to 10 Bar and temperature changes commonly encountered in industrial settings, ensuring safe and long-term operation.
