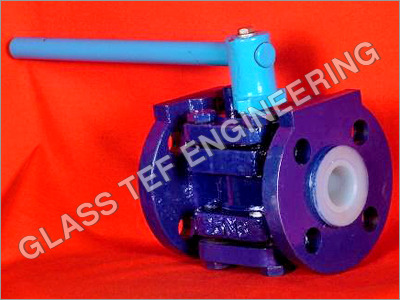

FEP / PFA Lined Plug Valve

Name: FEP / PFA Lined Plug Valve
Brand: GLASS TEF ENGINEERING
Price: 2500 INR
Availability: InStock

Price 2500 INR/ Piece

Get a Price/Quote

FEP / PFA Lined Plug Valve Specification

Material
Cast iron / Ductile iron / WCB body with FEP / PFA lining

Valve Size
DN 15 to DN 200 (1 to 8)

Valve Type
Plug Valve

Connection Type
Flanged (DIN, ANSI, JIS standards)

Sealing
PTFE diaphragm and seats for zero leakage

Structure
Plug valve with FEP/PFA lining

Voltage
As per actuator specification

Application
Corrosive chemical, acid, and alkali service in chemical processing, pharmaceuticals, and water treatment plants

Type
FEP / PFA Lined

Power
Manual, pneumatic, or electric actuator

Pressure
Up to 16 bar (PN16)

Media
Liquids, gases, corrosive chemicals

Port Size
Full Bore

Disc
PTFE / PFA lined plug

FEP / PFA Lined Plug Valve Trade Information

Minimum Order Quantity
01 Piece

Supply Ability
100 Pieces Per Day

Delivery Time
1 Week

About FEP / PFA Lined Plug Valve

Being an authentic manufacturer and exporter of FEP / PFA Lined Plug Valve, we have managed to mark a distinct position in the industry. This valve is designed and developed as per the aviation fueling, refining, oil & gas production and pipeline industries norms. Our offered valve is highly applauded for its various features like high strength, longer functional life and high efficiency. With the help of our reliable logistics team, we assure safe transit of this FEP / PFA Lined Plug Valve without causing any damage.

Other information:

Key Features:

Made from ductile material
High strength
Maximum efficiency
Long functional life

Specification

Body/ Plug : Di / Wcb / Ci, Cf8m , Cf8
Lining : Fep / Pfa,
Thickness : 3.5 Mm Minimum
Pressure : Hydoro Tested : Body : 20 Kg/Cm2,
Seat : 15 Kg/Cm2
Pneumatic Test : For 10 Kg/Cm2 By Air
Spark Test : 15 Kv
Sizes Available : REGULAR Type: 15nb ( 1/2" ) To 150 Nb ( 6")
Reducing Type : As Per Customer Requirement

Engineered for Harsh Chemical Applications

FEP/PFA lined plug valves are specifically designed for corrosive chemical, acid, and alkali service. Their robust construction and high-integrity linings offer maximum protection against corrosion, extending valve service life in challenging process environments. Full compliance with international standards ensures reliability and operational safety across a range of industries.

Zero Leakage Assurance and Flexible Actuation

Equipped with PTFE diaphragms and seats, these plug valves meet Class VI leakage standards, delivering true zero-leakage performance. The valves operate efficiently with a quarter-turn mechanism, suitable for manual, pneumatic, or electric actuation. This versatility allows integration into modern automated processing systems or reliable manual applications.

Quality Manufacturing and Tailored Solutions

Manufactured according to API 599 and BS 5353, each valve is rigorously inspected for performance. Body coatings such as epoxy powder or industrial paint increase resistance to external corrosion, and various flange standards (DIN, ANSI, JIS) guarantee compatibility with regional piping systems. Custom port sizes and pressure ratings up to PN16 meet unique plant requirements.

FAQs of FEP / PFA Lined Plug Valve:

Q: How does the FEP/PFA lining enhance the performance of plug valves in corrosive environments?

A: The FEP/PFA lining acts as a robust barrier that resists chemical attack from aggressive media like acids, alkalis, and solvents, preventing corrosion of the metal body and ensuring long-term valve reliability in harsh process applications.

Q: What is the recommended process for selecting the right end connection and port size for my application?

A: Choose the end connectionflat face or raised face flangesbased on your piping systems standard (DIN, ANSI, JIS). Ensure the full bore port size (DN 15 to DN 200) matches both your flow requirements and the installations flange specification for optimal compatibility.

Q: When should I opt for pneumatic or electric actuators instead of manual operation?

A: Pneumatic or electric actuators are preferred when valves need to be operated frequently, remotely, or as part of an automated process. Manual operation is suitable for less frequent use or in installations where automation is not required.

Q: What testing standards and certifications do these plug valves comply with?

A: The valves adhere to internationally recognized standards including API 599 and BS 5353, and are ISO and CE certified, ensuring consistent quality, safety, and regulatory compliance.

Q: Where are these FEP/PFA lined plug valves typically installed?

A: They are commonly installed in chemical processing plants, pharmaceutical manufacturing, and water treatment facilities where reliable corrosion resistance and leak-free operation are critical for handling hazardous liquid or gaseous media.

Q: How does the Class VI leakage rating benefit my process operations?

A: Class VI leakage signifies zero allowable leakage, which minimizes product loss, enhances safety, and prevents environmental contaminationan essential feature for processes dealing with hazardous substances.

Q: What are the primary advantages of epoxy powder coating or painting on the valve body?

A: Epoxy powder coating or painting protects the exterior of the valve from external corrosion and environmental damages, thereby prolonging the service life and reducing the need for maintenance, even in aggressive industrial atmospheres.
