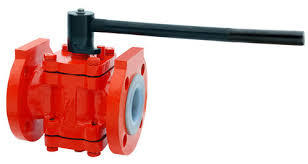

Ptfe Lined Plug Valve

Name: Ptfe Lined Plug Valve
Brand: GLASS TEF ENGINEERING
Price: 2500 INR
Availability: InStock

Price 2500 INR/ Piece

Get a Price/Quote

Ptfe Lined Plug Valve Specification

Valve Type
2-way, straight-through

Valve Size
15 mm to 300 mm ( to 12) available

Connection Type
Flanged (ANSI/DIN/BS standards)

Features
Low torque operation, bubble tight shutoff, anti-static design, corrosion resistance

Material
Cast iron/WCB body with PTFE lining

Control System
Manual hand lever or gear

Application
Corrosive and hazardous fluid handling in chemical, pharmaceutical, and petrochemical industries

Structure
Plug type, PTFE lined

Voltage
Not applicable (manual operation)

Sealing
PTFE lining and elastomer seals

Type
Plug valve

Power
Manual

Pressure
Up to 16 Bar

Media
Acids, alkalis, solvents, water, gases

Port Size
Full bore

Temperature
Up to 180C

Disc
PTFE coated plug

Pin
Stainless steel

Ptfe Lined Plug Valve Trade Information

Minimum Order Quantity
01 Piece

Supply Ability
100 Pieces Per Day

Delivery Time
1 Week

About Ptfe Lined Plug Valve

Our PTFE Lined Plug Valve can withstand any kind of chemicals with a wide temperature range. It is almost unaffected by changes in chemical concentration or process temperature. Also, the valve has the concepts of high precision, reliability and safety. It shows a right mix of quality materials, technology and craftsmanship. Our designed PTFE Lined Plug Valve is also known for quick and easy fitting. Its excellent sealing capabilities make it a perfect flow solution in the industry as well.

Features & Benefits:

Maximum corrosion resistance
Quick and simple setting
No particle accumulation
Prevents liner collapse and blow out
Perform well even in high temperature and pressure conditions

Superior Corrosion Resistance

Encapsulated in PTFE and coated with epoxy, our plug valves offer exceptional protection against aggressive chemicals, moisture, and other corrosive substances. This makes them ideal for use in environments where maintaining system integrity and minimizing downtime are crucial due to harsh process conditions.

Reliable Zero-Leakage Sealing

Engineered to Class VI leakage standards, these PTFE Lined Plug Valves guarantee bubble-tight shutoff. The self-adjusting PTFE diaphragm enhances stem sealing, while the robust elastomer and PTFE-lined internals prevent fluid migration and ensure maintenance of process purity under demanding operating conditions.

Effortless Operation and Versatile Integration

With a low-torque, manual hand lever or gear control system and an ISO 5211 actuator mounting flange, these valves are user-friendly and easy to integrate into automated and manual systems. Available in various connection standards and sizes, they fit diverse installation requirements across global industries.

FAQs of Ptfe Lined Plug Valve:

Q: How is the PTFE Lined Plug Valve used in industrial applications?

A: This plug valve is widely used for controlling the flow of corrosive and hazardous fluids in chemical, pharmaceutical, and petrochemical processes. Its PTFE lining provides resistance to a wide range of aggressive media, ensuring reliable operation without contamination or leaks.

Q: What are the main benefits of a PTFE encapsulated plug and lining?

A: The PTFE encapsulation offers superior chemical resistance, prevents corrosion of the plug and valve body, minimizes maintenance, and ensures a long service life even when handling harsh acids, bases, or solvents. It also guarantees Class VI (zero leakage) shutoff for process safety.

Q: When should I select a PTFE Lined Plug Valve over other valve types?

A: Choose a PTFE Lined Plug Valve when your application involves highly corrosive or hazardous fluids, or when complete isolation and zero leakage are required. They are ideal for processes that demand chemical compatibility and a contamination-free environment.

Q: Where can these valves be installed within a processing system?

A: These valves are suitable for pipeline sections in industrial plants requiring strict fluid control, such as transfer lines, process vessels, and utility services. The flanged end connections (RF/FF) make them compatible with ANSI, DIN, or BS standard pipelines.

Q: What is the process for mounting an actuator on this valve?

A: Thanks to the ISO 5211 mounting flange, fitting an actuator is straightforward. Remove the manual hand lever or gear, then align and secure the actuator to the ISO 5211 flange for automated remote or on-site valve operation.

Q: How does the design ensure leak-free, long-term performance?

A: The PTFE lining and elastomer seals create a comprehensive barrier against fluid migration. The self-adjusting PTFE diaphragm at the stem enhances sealing as wear occurs, and the full encapsulation protects against internal and external corrosion, promoting long-lasting operation.

Q: What kind of fluids can this PTFE Lined Plug Valve handle?

A: It is designed to accommodate a broad spectrum of media, including acids, alkalis, solvents, water, and various gases. Its materials and construction make it suitable for demanding environments that would rapidly degrade conventional valve components.
