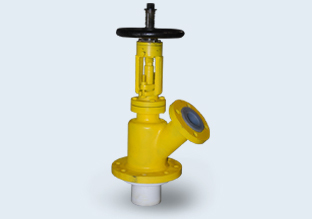

Pfa Lined Flush Bottom Valve

Name: Pfa Lined Flush Bottom Valve
Brand: GLASS TEF ENGINEERING
Price: 2500 INR
Availability: InStock

Price 2500 INR/ Piece

Get a Price/Quote

Pfa Lined Flush Bottom Valve Specification

Features
Anti-corrosive, non-contaminating, smooth drainage, zero hold-up design, maintenance free

Control System
Manual handwheel, pneumatic actuator

Valve Size
DN 25 to DN 250 (1 to 10) or as specified

Connection Type
Flanged ends as per ANSI B 16.5 150#/DIN/BS

Material
Mild Steel or Stainless Steel body with PFA lining

Valve Type
Flush Bottom / Bottom Outlet Valve

Voltage
Not applicable for manual operation; Pneumatic actuation available

Structure
Globe type with inclined or straight pattern

Sealing
PFA Lined with PTFE or FEP seat for tight shutoff

Application
Widely used for draining tank/reactor contents in chemical, pharmaceutical, food, and petrochemical industries

Type
Flush Bottom Valve, PFA Lined

Power
Manual or Pneumatic actuated

Pressure
Up to 10 bar (145 psi)

Media
Suitable for highly corrosive acids, solvents, and chemicals

Port Size
Customized; standard options from 25 mm to 250 mm

Temperature
Up to 200C (392F) depending on lining and pressure

Disc
PFA Lined Disc, corrosion-resistant

Pin
Corrosion-resistant pin for long service

Pfa Lined Flush Bottom Valve Trade Information

Minimum Order Quantity
01 Piece

Supply Ability
100 Pieces Per Day

Delivery Time
1 Week

About Pfa Lined Flush Bottom Valve

We are offering quality PFA Lined Flush Bottom Valve having thick lining of flouro polymers, which is food grade and anti corrosion. It is majorly used in chemical as well as pharmaceutical industries. The material used in its interior is indifferent to most of the acids and alkalies and thus, gives it a longer service life. The operations of PFA Lined Flush Bottom Valve can be automated with pneumatic cylinder and other related accessories.

Superior Corrosion Resistance

With its seamless 3 mm thick PFA lining throughout all wetted parts, the valve effectively resists corrosive acids, solvents, and aggressive chemicals encountered in industrial processes. Its smooth, non-stick interior prevents scaling and ensures long-term performance, reducing the risk of media contamination.

Versatile Applications and Customization

Designed for installation at the bottom of tanks or reactors, this flush bottom valve supports a broad range of industries requiring safe, efficient drainage. It can be customized for size, port dimensions, end connections, and handle typeoffering adaptability to meet precise operational requirements.

Reliable, Leak-proof Operation

Conforming to ASME, ANSI, or DIN standards, each valve is rigorously hydrostatically and pneumatically tested for 100% leak-proof class VI (bubble-tight) shutoff. Its rising stem mechanism, anti-corrosive pin, and maintenance-free construction ensure continuous, reliable usage even under high-pressure and high-temperature conditions.

FAQs of Pfa Lined Flush Bottom Valve:

Q: How does the PFA lined flush bottom valve prevent media contamination or scaling?

A: The valve features a completely smooth, non-stick PFA-lined interior that resists scale buildup and prevents contamination, making it ideal for processes involving sensitive or aggressive chemicals.

Q: What are the typical usage scenarios for this valve?

A: This valve is widely employed for draining corrosive or high-purity fluids from tanks, reactors, or vessels in the chemical, pharmaceutical, food, and petrochemical industries, ensuring efficient and residue-free outflow.

Q: When should I specify custom face-to-face dimensions or end connections?

A: Custom face-to-face or end connection specifications are recommended when you need to fit the valve into existing piping layouts or require compatibility with non-standard equipment. The manufacturer can accommodate such needs for seamless integration.

Q: What is the process for installation and commissioning of the valve?

A: The valve is mounted at the tank or vessel bottom using flanged connections as per ANSI, DIN, or customer-specified standards. After installation, its bubble-tight shutoff and performance are verified through hydrostatic and pneumatic tests.

Q: Where are these flush bottom valves manufactured and supplied from?

A: These valves are manufactured, exported, and supplied by leading Indian manufacturers and service providers, with global availability and options for customization based on client requirements.

Q: How does manual operation differ from pneumatic actuation?

A: Manual operation uses a handwheel for opening and closing the valve, suitable for routine applications, while pneumatic actuation enables automated control for rapid or remote operation, depending on process needs.

Q: What key benefits does this valve offer for continuous operation?

A: It provides anti-corrosive, non-contaminating flow with maintenance-free construction, ensuring long service life, reliable performance under pressures up to 10 bar and temperatures up to 200C, and full drainage without dead pockets.
